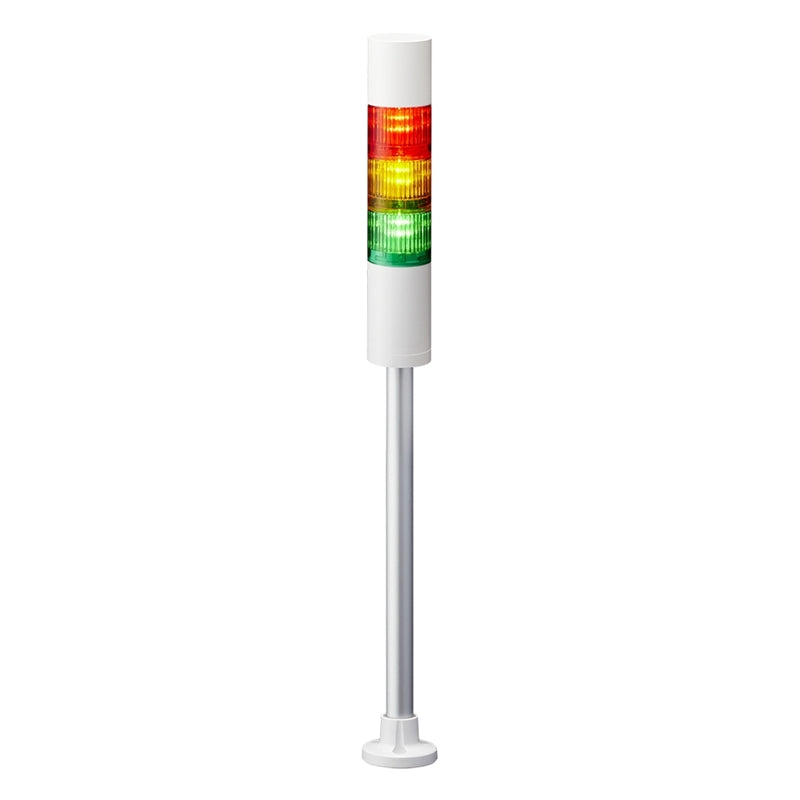

LR5-302PJBW-RYG, 50mm Signal Tower

Operating Ambient Temperature

• -20℃ - +50℃

Operating Humidity Range

• 90% RH or less, no condensation

Storage Temperature Range

• -30℃ - +60℃

Storage Humidity Range

• 90% RH or less, no condensation

Mounting Location

• Indoor Use

Mounting Direction

• Upright Position

Protection Rating

• IP65(IEC 60529) / NEMA TYPE 4X, 13

Environmental Conditions

• Upright Position

Insulation Resistance

• More than 1MΩ at DC500V between the power input lead and chassis

Withstand Voltage

• AC 500V for 1 minute between terminals and chassis without breaking insulation (M2: AC1500V for 1 min.)

Flash Rate

• 60 ±2 Flashes / min

Sound Level

• LR5 Typ. 85dB

Sound Reduction*

• ab. -10dB reduction

Environmental Conditions

• Buzzer Sound No.4 (Sweep) from all directions at a 1m distance

Buzzer Sound

• 4 patterns* No.1Rapid Intermittent sound No.2Continuous sound No.3Rapid Hi-low No.4Sweep sound

Transistor Output

• NPN / PNP (AC100 - 240V is NPN only)

Conformity Standards

• UL 508, CSA-C22.2 No.14
• FCC Part 15 Subpart B Class A
• RoHS Directive (EN 50581)
• EMC Directive (EN 61000-6-4, EN 61000-6-2)-
• KC (KN 61000-6-4, KN 61000-6-2)

* Dependent on DIP Switch Setting
